Suburban Dynaline PTAC

 Dynaline 3
Economical suburban Dynaline  gas heat / electric cool PTAC gas heat and high efficiency electric air conditioning for year round savings and comfort.
Suburban developed the first gas-fired package terminal air conditioner (PTAC) in 1985 called Dynaline. Now, in its 3rd generation design, Suburban is a leading supplier to the senior housing industry as well as other small commercial markets.

The Suburban Dynaline PTAC standard 42x16" wall sleeve makes Dynaline 3 the right choice for new construction or direct replacement for other brands such as Island Aire.  Gas (Natural or LP) connections can be inside or outside the room.

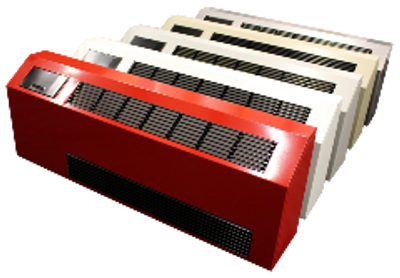

[Suburban Dynaline3 Gas-Fired PTAC]
Each unit is individually controlled so comfort levels can be set for each room or zone. The top-mounted controls provide for High and Low speeds in both heating and cooling modes, plus a fan only mode. The Dynaline 3 can be controlled from the unit or from a wall thermostat.

The Dynaline 3 is available in four standard colors, plus stainless steel and in unlimited custom colors.
Dynaline 3 Standard colors:

• Champaign Beige
• Mesa Tan
• White
• Gray

Four capacities are available, all operating efficiently and economically utilizing R410A refrigerant.

DL3-0712
Provides a cooling capacity of 7,600 BTU/h along with 12,000 BTU/h of rated heating input.

DL3-0912
Provides a cooling capacity of 9,500 BTU/h along with 12,000 BTU/h of rated heating input.

DL3-1220
Provides a cooling capacity of 11,500 BTU/h along with 18,000 BTU/h of rated heating input.

DL3-1622
Provides a cooling capacity of 15,000 BTU/h along with 20,000 BTU/h of rated heating input.
